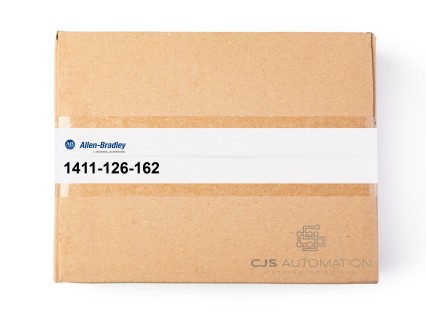

The 1411-126-162 is a solid-core, single-piece current transformer designed for accurate measurement and monitoring of electrical currents. It features an 8.25-inch inner diameter with a square outer shape, suitable for low voltage applications up to 600V in accordance with IEEE/ANSI C57.13 standards. The transformer has a primary rated current of 1600 A and a secondary rated apparent power of 50 VA, with a current ratio of 1600:5. Its ANSI metering class is 0.6 at 60 Hz, B1.8. Terminals consist of brass studs No. 10-32 UNC, equipped with flat washers and lock washers. The approximate weight is 5.5 pounds. This transformer is ideal for use in electrical systems requiring precise current measurement and is constructed to meet industry standards for safety and performance.
The above description is based on our office/warehouse notes. Some data may be inaccurate - refer to your part number.

If you're unsure whether this part is a perfect match, please contact us.
