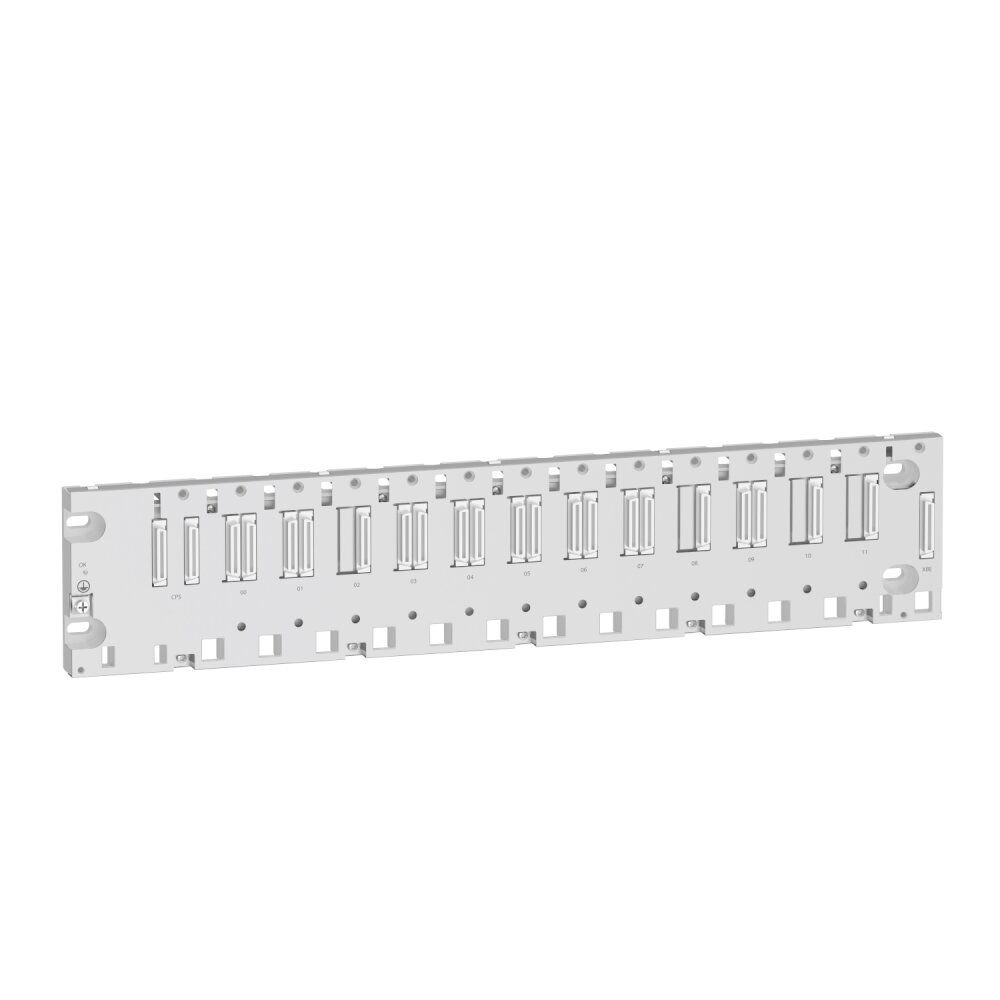

The BMEXBP1200H is an Ethernet backplane rack designed for industrial applications. It features 12 slots and includes a connector (XBE) expansion module for electrical connections. The backplane operates with a current of approximately 164mA at 24V DC and 86mA at 3.3V DC. It is built to withstand severe environments, with conformal coating for enhanced durability. The rack supports multiple bus configurations, including 4 bus X and 8 bus X + Ethernet, and is compatible with various modules such as power supplies, I/O modules, and specific application modules. Designed for ruggedized operation, the BMEXBP1200H is suitable for demanding industrial settings requiring reliable Ethernet connectivity and modular expandability.
